Carina GaN

Integrated Amplifier with GaN Power Amplifier

Regular price $2,999.00 | Save $-2,999.00 (Liquid error (sections/product-template line 192): divided by 0% off)
/

• 200 watts per channel GaN power amplifier with independent power supply
• DAC-less “power DAC” design with zero feedback
• 4 digital audio inputs including USB-C
• Analog input configurable as Phono (Moving Magnet), AUX or Home Theater Bypass
• Bluetooth v5 wireless input
• OLED front panel display

Free Shipping & Returns

30 Day Money Back

Price Protection

90-Day Trade Up

Customer Reviews

Based on 7 reviews
86%
(6)
14%
(1)
0%
(0)
0%
(0)
0%
(0)
S
SZ
An upgrade I didn't know I needed

Coming from 6 years with the nova150, most recently driving a pair of KEF R7s, here's what stood out most:
-significant reduction in hiss when speakers are plugged in with nothing playing
-clearer & more satisfying even at low volumes (i.e., fuller sound), possibly due to a "blacker" audio background
-deeper soundstage, where distance of each instrument / vocal from the listener is immediately obvious
-more life-like, with better reproduction of textures & timbres

I was already extremely pleased with the nova150 in all of these respects, but the Carina GaN has shown me what I was missing.

J
Jason LaFontaine
Great Amp. Sounds more like Class A.

I traded in my Carina. The original Carina was 300W and the GAN is rated 200W. I use Magnepan 1.7s speakers and it sounds great. Tighter bass and warmer mid range. You can hear more detail in the music. I would give it 5//5 if if was 300-400Watts as I think that is the sweet spot to power Magnepan Speakers in a large room.

M
Mark Sawyer
Incredible!

I bought the Carina GaN to replace my Nova500, I was a little worried about the power output downgrade but after a weeks' worth of listening, I'm sold. The sound quality difference is amazing, and I haven't missed the extra output of the Nova500 in the least. I still own a couple of PreDac's and four Amp500's, they have their place. But for detailed listening, the Carina GaN is my choice. Just an amazing piece of audio equipment with the style to match.

S
Shashi K.M.
Best Integrated AMP for Digital Sources

I owned a Peachtree Nova 150 before and when I saw the trade-in opportunity, I wanted to utilize it to experience the GanFET amps with the DAC less PowerDAC technology Peachtree Audio uses.

My setup:
Speakers: LS50 Meta (Passive)
Subwoofer: REL T7/X using High Level.
Source: Amazon Music HD via USB(Computer)
Room: 400 SQFT;

I didn't have much expectation from the unit but it blew me away with its performance.

1. Resolution: Phenomenal increase in resolution across the frequency range its not even a comparison with Nova 150. Even the subtlest of details just shine through which was inaudible with my Nova 150.

2. Imaging and Soundstage: Again, mind blowing increase soundstage width and depth and pinpoint accuracy in imaging. Its a spotlight effect on the different layers of music.

3. Excellent Low volume performance. I hear all the details and soundstage at 60db to 65db sound level in a quiet room.

4. Sound Signature: Neutral and Transparent.

For digital sources, this is one of the best integrated amplifier you can get for the money. Extremely happy with both the product and prompt response from customer support.

Highly Recommended.

P
Phil C
Better than my nova300 in every way

I've been a Peachtree fan for years, and after reading glowing reviews for the nova I bought a nova300 years ago and loved it. It's been a workhorse and worked perfectly, running some days at least 12 hours. The ideas behind the carina GaN were intriguing and while the technology has come a long way, I really appreciate the screen - a huge step up in usability from the nova series, of course what really matters is the the sound, and wow - just an immediate improvement. After swapping out the nova for the carina I got a clear indication of how huge a step up this really is. Jazz, EDM, rap, indie, rock, everything just sounds better - bass is more defined, the "blackness" of how quiet the system is, brighter highs, clearer instrument separation; just a solid upgrade across the board. Peachtree's support (I had some questions about the nova) has been excellent and the offers to trade in old systems for new ones is perfect. Obviously I took advantage of that and couldn't be happier. The only thing I fretted about was going with the 'piano black' versus the beautiful 'mocha' that my nova came in... but the black combined with the big black screen on the carina looks perfect to me! Top notch all around. Thank you, now back to the music!

44

Overview

Carina

Carina is a name in the Italian language that roughly translates to “pretty" and is derived from the Latin word Carus that means “beloved." We are confident that Carina looks and performs better than anything else in its price range - and many products that cost significantly more. Should Carina earn a place in your system it will win your heart and mind too!

The Carina GaN

The Carina GaN is a 200 watt-per-channel integrated amplifier incorporating the revolutionary Gallium Nitride (GaN) technology introduced in the revolutionary Peachtree GaN 1. The Carina GaN provides a musical path to your speakers that is remarkably short, direct and pure. Want to hear all of the intricate details in your music that have always been there but you couldn't quite hear them before? That is exactly what the Carina GaN does that other amplifiers fall short of. The Carina GaN accepts five digital audio inputs including USB-C and Bluetooth v5 plus a versatile analog audio input that is switchable between Moving Agent (MM) phono, AUX and Home Theater bBypass. The Carina GaN will drive virtually any speaker with remarkable clarity, authority and finesse.

What makes the Carina GaN special?

First and foremost is the GaN amplifier module. It has several inherent advantages in a high power application like a power amplifier. A GaN-FET power stage provides a precise high-power reproduction of the Class-D PWM signal with extremely high linearity and relatively low distortion compare to MOS-FET. This linearity eliminates the need for ANY feedback, ultimately allowing for exceptionally clean and transparent midrange and high frequencies along with strong and remarkably well controlled low frequencies. GaN-FETs track the complex audio waveforms so much more accurately than MOS-FETs resulting in significantly more transparent and natural sound. The difference is something even a casual listener can hear and appreciate.

The Carina GaN is designed so that it does NOT require a traditional digital-to-analog-converter (DAC) for its digital sources. The GaN-FET power stages functions as a “power DAC” creating the analog waveform that drives the speakers WITHOUT thinned for a separate DAC! Just a super short and direct path from your music sources to your speakers. Carina GaN also use a separate regulated power supply for the amplifier module making it more like a separate preamplifier and power amplifier that share the same chassis. And for any analog sources the Carina GaN utilizes a high-performance AKM solution to achieve a remarkably accurate signal for the GaN-FET power module to operate optimally with these sources.

The Carina X

The Carina X is a 300 watt-per-channel integrated amplifier incorporating the NCore X technology recently introduced by Hypex. The X technology takes traditional class-D power amplifier design to the highest level. Unlike the Carina GaN, the power amplifier in the Carina X uses a MOS-FET power stage with high amount of global negative feedback to achieve remarkable measured performance and sonic transparency. It is the only class-D power amplifier, that we have heard to date, that achieves most of the same sonic attributes we experience when listening to the Carina GaN. Similar to the Carina GaN, the Carina X utilizes a separate power supply for the amplifier modules making it more like a separate preamplifier and power amplifier that share the same chassis.

The Carina 300 & Carina 150

Both of these units incorporate the NCore power amplifier technology from Hypex. The Carina 300 and Carina 150 provide exceptional performance at their respective price points and exceed the transparency and sound quality of ALL of our previous designs. They are only outmatched by our Carina X and Carina GaN in terms of ultimate sonic transparency and sound quality. The Carina 300 is a great match for less sensitive speakers, larger rooms or for listeners who simply enjoy their music at higher levels. And given just how good Carina sounds at those higher levels, we get it! The Carina 150 is designed for higher sensitivity speakers (90dB+), smaller rooms of for listeners who enjoy their music at more moderate levels but still expect an exceptional listening experience.

Why we made Carina

Carina was designed as a high-performance yet flexible platform that would provide the very best results from digital and analog source devices and interface with any type of power amplifier we chose. Every portion of the platform is meticulously designed with an eye for sonic purity, simplicity and sound quality. The result was a new price/performance benchmark for integrated amplifiers. Add in the more intuitive user interface of the OLED display and timeless Peachtree Audio cosmetic design - Carina could, very well, be the last integrated amplifier you will ever need or want.

Carina highlights



Digital

  • Two ESS 9068 DAC chips, dual mono (one for the left channel, one for the right channel)
    [The DACs in the Carina GaN are only for the headphone and preamp outputs]
  • Accepts HD audio input up to 768k PCM and 512k DSD
  • Digital to analog filter settings including ow-pass rolloff and oversampling on/off

Analog

  • Analog input configurable as Phono (Moving Magnet), AUX or Home Theater Bypass

Preamplifier

  • Fully balanced circuitry
  • High-performance, hybrid volume control (combination analog resistor ladder with digital attenuation)
  • User selectable full-digital volume control option for silent operation
  • Bluetooth v5 input with HD audio codecs
  • Stereo (Preamp) analog output for connecting to a powered subwoofer or external power amplifier

Amplifier (Carina GaN)

  • Power DAC topology [The Carina GaN amplifier performs the digital to analog conversion function]
  • 200 watts-per-channel GaN power amplifier with zero global negative feedback
  • Separate regulated power supply [Same output power from 4-8 Ohms]

Amplifier (Carina X)

  • 300 watts-per-channel Hypex NCore X power amplifier
  • Separate power supply

Amplifier (Carina 300 and Carina 150)

  • Hypex NCore power amplifier module

Other

  • Peachtree Audio industrial design made from aluminum and real wood available in high gloss mocha or piano black finishes
  • High-visibility OLED front panel display with an intuitive dual knob user interface
  • Fully-balanced headphone amplifier with a 4.4mm T/R/R/R/S output and standard 1/4" unbalanced output
  • Trigger input and output for power on/off control to or from other devices

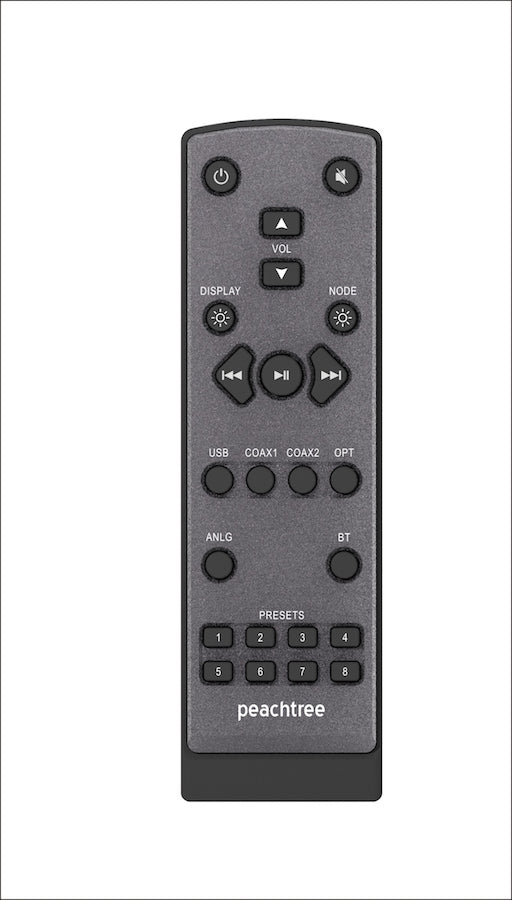

  • Hand-held wireless remote control with integrated commands for Bluesound devices (NODE, VAULT, etc.)

How does Carina sound?

Carina integrated amplifiers are our best sounding integrated amplifiers ever - period. Even better than the highly regarded nova series, the Grand Integrated and the original nova and decco amplifiers that came before. How does Carina compare to the nova150/300/500? Simply stated, model for model, Carina is better. It has a superior DAC section, a more transparent volume control, a better phono preamplifier, more transparent and natural sounding power amplifiers and a fully balanced headphone amplifier. Each of these functions has taken advantage of recent advancements in parts quality and design and integrated into a cohesive design that achieves remarkable sound quality from source to speakers.

Features in Carina that are not available in the nova series:

  • Dual DAC chip design
  • HD audio input up to 768k PCM and 512 DSD
  • Fully balanced circuitry from the DACs to the power and headphone amplifiers
  • Fully balanced headphone output
  • High-performance, hybrid volume control (combination analog resistor ladder/digital attenuation)
  • Bluetooth v5 input with HD audio decoding
  • OLED front panel display with large characters
  • Numeric volume control range
  • Trigger input for on/off control from another device


Design

Dual DAC and Balanced Analog Design

The Carina GaN utilizes two ESS Technology 9068 DAC chips in dual-mono mode with one chip dedicated to the left channel and the other to the right channel. ESS is a leader in audiophile DAC design and manufacturing and their 9068 is the successor to the 9038 which, in turn, is the successor to the venerable 9018. The 9068 achieves excellent THD+N (120dB) and DNR (128dBA) and is also the world's first audio DAC with a built-in MQA hardware renderer. The 9068 DAC chip performs exceptionally well on its own, but when two are used in dual-mono mode, the measured performance and sonic transparency is elevated to an even higher level. Peachtree Audio was the first premium audio brand to implement ESS DACs in its products beginning with the original nova in 2009 and has continued to use their DACs ever since.

To help ensure that the high quality analog signal from the DACs is preserved, the current to voltage converter stage features ultra low distortion op-amps, along with a balanced, class-A, discrete output stage to drive the volume control with a low source impedance. The volume control in the Carina GaN is designed to preserve the integrity of the sound even further by utilizing a high-performance resistor ladder (with .1% tolerance resistors) and digital attenuation hybrid design. This type of sophisticated volume control circuit is rare in a product in this price range, but provides ultra-precise control of the output level while maintaining exceptional channel balance throughout the volume range. With such a high quality DAC and preamplifier design in front of them, the power and headphone amplifiers are able to perform while providing greater transparency, less background noise and. ultimately, remarkable sonic clarity.

New Digital Features

The Carina GaN utilizes precision femtosecond crystal oscillators (digital clocks) to minimize phase noise and jitter. A custom designed FPGA with clock management and an additional phase lock loop reduces jitter even further, providing a level of control typically reserved for stand alone DACs. The DACs in the Carina are capable of supporting PCM up to 768kHz and DSD up to 512kHz via the USB-C input. These are the highest input sampling rates we have ever supported in our products and are available for users that want to experiment with sample rates. The Carina GaN also includes a digital filter setting for fine-tuning the sound of the DACs with 3 settings; L-FAST, H-FAST and M-SLOW. Each filter has an objective (measurable) and subjective (audible to most) effect on the sound. We encourage people to audition all three settings to determine the one that sounds the best to them. Most people will hear the differences in the high-frequency reproduction where they are most readily heard. There is also a no oversampling (NOS) setting in the Carina GaN, which sends the original digital signal straight to the modulator without any oversampling. This mode is useful for users to experiment with software-based oversampling features in products such as Roon.

Phono Input

“Carina

The Carina GaN provides the vinyl lover a purpose-designed built-in moving magnet phono input. A high-end AKM analog-to-digital converter maintains the lowest noise floor possible for the delicate phono signal. No vinyl? Just switch the input to AUX.



Streaming

We recommend using a Bluesound NODE or similar in conjunction with the Carina and streaming high-resolution audio from services such as Qobuz, Apple Music and amazon music HD. In our experience, the sound quality of all of these streaming services is impressive. The libraries are huge and the convenience is unmatched!

Bluetooth

The Carina GaN has a built-in Bluetooth 5.0 receiver with HD audio decoding. It provides a convenient way to stream wirelessly from any Bluetooth enabled device. The Carina GaN also has a setting that only turns on the internal Bluetooth receiver when the Bluetooth input is selected. This minimizes the amount of RF inside the amplifier when using any of the wired inputs.

Amplification

The 200 watts-per-channel GaN-FET power module provides a precise high-power reproduction of the Class-D PWM input signal with extremely high linearity. This linearity eliminates the need for ANY feedback, ultimately allowing for the best possible audio quality. The Carina GaN will drive virtually any speaker with ease and authority while maintaining low noise and terrific dynamics. The speaker outputs are high-quality CMC 5-way binding posts. The Carina GaN also provides a high-performance balanced headphone amplifier with a 4.4mm T/R/R/R/S output, plus a 1/4” unbalanced output for regular headphones. The power and clarity of the headphone amplifier is remarkable for an integrated amplifier and the balanced output is typically only found on dedicated headphone amplifiers!

Timeless Design

Peachtree Audio prides itself on making products that not only sound great, but look great and are easy to use. All of our products are meticulously crafted out of metal and wood and integrate with a wide range of interior designs from traditional to contemporary to post-modern. Carina introduces a high-quality OLED front panel display with large characters and a dual-knob user interface that retains the ease of use our products have always been known for along with the visual feedback many have requested. This display provides more information than our previous amplifiers and can be easily viewed from most listening positions.

Integration Features

  • Hand-held wireless IR remote control with integrated commands for Bluesound devices like the NODE, VAULT, etc.
  • Stereo preamp output for connecting a powered subwoofer or an external power amplifier like the GaN 400
  • Trigger input and output (1/8”) for power on/off control to or from another device

Specifications

Carina GaN Specifications

“Carina




Reviews

Audio Pursuit logo
Peachtree Carina GaN integrated amplifier takes GaN technology to the next level!

…a smoother, more solid-state comparable sound.

…Solid electrical engineering design will give all users a positive experience. I know I did.

…an improved phono stage that digs deeper.

Read the full review here: Peachtree Audio Carina GaN Review

Or check out the review on Youtube by clicking here:  Youtube


Carina GaN review by Charles Umberger


“The Carina GaN simply blew me away.”

“The Carina GaN continues the simple good looks and beautiful finishes that Peachtree has employed for many years.”

“If you are in the market for a quality integrated amp, you owe it to yourself to audition the Peachtree Carina GaN. The market for integrated amps grows more crowded each year, but each year Peachtree continues to leapfrog the competition with innovation and value.”

Read the full review here: Carina GaN Review by Charles Umberger


A Letter from a dedicated Peachtree fan

"The Carina is a lovely, musical integrated amplifier. I now enjoy listening to all kinds of
music including pieces I thought I knew. I am hearing things I never heard before on albums
and tracks that are longstanding favorites. Better yet, harshness from poor recordings are
less noticeable."

Read the full review letter here: Peachtree Carina GaN: When less is more
