Mono X Power Amplifier

Amplifier

Regular price $1,199.00 $1,499.00 | Save $300.00 (20% off)
/

• Machined Aluminum Chassis
•Hypex NCore X amplifier module
• 1200 Watt Power Supply
• Balanced and unbalanced audio inputs
• 2 trigger inputs and front panel power button input switching logic
• Rear panel ground connection for Rel subwoofers, Bluesound NODE Icon, etc.
• Mono X output 350|700 Watts (8|4 ohms)
• CE/FCC approval

Free Shipping & Returns

30 Day Money Back

Price Protection

90-Day Trade Up

184

Overview

Not long ago, building a truly high-power amplifier meant making real compromises. To deliver 350 watts into 8 ohms and 700 watts into 4 ohms, you needed enormous power transformers, vast electrical storage, and acres of heat sinking. Efficiency was poor, heat was relentless, and without fans, the only solution was sheer size and mass. The result was an amplifier that was heavy, expensive, and often large enough to sit on the floor as a statement piece. Some sounded wonderful. Others less so. But they all shared one thing: brute force came at a very high cost.



Then things began to change.



Forward-thinking engineers started asking better questions. Could power be delivered more intelligently? Could efficiency and sound quality finally coexist? Early designs showed promise but fell short. They ran cooler, were smaller, and more affordable, but something was missing. The music felt constrained—slightly off—never quite matching the emotional impact of the best traditional designs. For a time, it seemed like progress had come with a permanent trade-off.



That ceiling finally broke.



Over the last decade, leading engineers revisited long-held assumptions and challenged the rules that had defined the category for years. They looked backward as much as forward, drawing insight from the industry’s own past and from advances made in modern DAC designs. With this broader perspective, everything came into clearer focus. The long-promised benefits of modern amplification—efficiency, power, and precision—could finally be achieved without sacrificing musicality.



Which brings us to today.



One of the pioneers in this field has created an amplifier platform that delivers an extraordinary combination of prodigious output, remarkable transparency, low heat, exceptional reliability, and realistic cost. We were so impressed by what we heard that we built it into three separate products, including the Mono X.



The Mono X is the purest and most powerful expression of that achievement. It is designed to drive any speaker load with complete ease and unwavering authority. No strain. No noise. No drama. Just effortless music and total control, revealing exactly what’s in the recording—nothing more, nothing less. It is the most complete and uncompromising power amplifier we have ever made and, in our view, one of the finest power amplifiers available at any price.



We have compared it directly with some of the most respected amplifiers from both today and the past. None outperforms it. In fact, many are exposed by the comparison. Massive chassis, towering heat sinks, and extravagant metalwork are sonically outclassed by an amplifier that is smaller, cooler, and vastly more efficient. Some competitors do not even make it through the test, shutting down when asked to keep up. Ask anyone who owns a pair of Mono X power amplifiers, and you will hear the same story.



The Mono X does not flex with size, weight, or ornate metalwork.

It flexes with absolute power, complete control, and uncompromising sonic honesty.



Spend your hard-earned money on performance, not pretense.



Design

Machined Aluminum Chassis
The X amplifiers are built in the same all aluminum chassis as our GaN-1. The chassis integrates easily into any system or home decor while providing the necessary cooling to ensure the amplifier provides optimal performance over its entire lifetime without the need for fans.

NCore X 500 modules
Simply one of the best, if not the best, silicon-based class-D amplifier module we have ever heard. On par with our GaN-based solutions. Remarkably musical, neutral, transparent, spacious and powerful. Everything you want from power amplifier.

1200 Watt Power Supply
A quiet, efficient and extremely powerful supply provides a rock solid foundation for the X amplifiers. The Stereo X utilizes a single power supply to drive both channels. The Mono X utilizes a single power supply for each channel allowing it to drive lower impedance speakers with greater authority.

Balanced and unbalanced audio inputs
High quality XLR and RCA connectors allow for easy connection from a preamplifier or source device with a high-quality volume control built-in.

Two trigger inputs and front panel power button input switching logic
The XLR and RCA inputs each have a corresponding trigger input. When a trigger is sensed, the X amplifier will automatically power ON and select the corresponding input. The front panel ON/Standby button provides a manual input select override. This allows the X amplifier(s) to be used with two different front ends more easily. For example, the XLR inputs can be connected to a stereo preamp or source device for music listening and the RCA inputs can be connected to a home theater receiver or preamp/processor for movie or TV listening.

Bi-amp button
The Stereo X includes a button on the back panel that sends one input to both amplifier outputs. This allows the Stereo X amplifier to be used to vertically bi-amp [one channel drives the woofer(s), the other drives the tweeter(s) and midrange(s)] a connected speaker without have to use “Y” connectors.

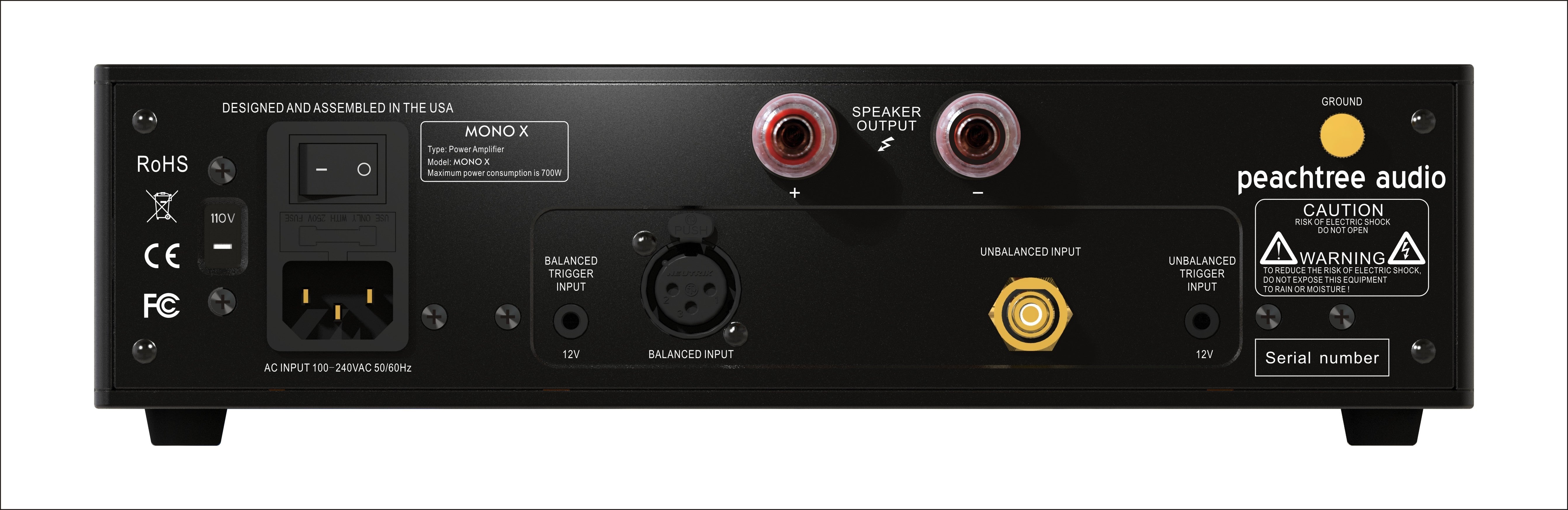

Rear panel ground connection
We have added a ground terminal on the back panel of the X amplifier to allow for easy grounding when using Rel subwoofers, a Bluesound NODE Icon, or any other device that requires a chassis ground connection

CE/FCC approval
Independent testing labs verify that the X Amplifiers exceed these safety standards.

Specifications

Specifications subject to change without noticeStereo 150XStereo XMono X
Compatible Speakers (Nominal Impedance)2Ω - 16Ω
Output Power [8Ω | 4Ω, 1% THD + N, AES 17]150 | 250 WPC300 | 600 WPC350 | 700 Watts
Frequency Response (20Hz-20kHz, all loads)< +/- .2 dB+0.00db / -0.03dB (-3dB @ 70kHz)
Signal-to-Noise Ratio [RCA | XLR, AES17, @5W]>98dB | >100dB>100dB | >105dB
Total Harmonic Distortion [RCA | XLR, AES17, 1kHz, @5W]<0.0010% | <0.0009%<0.0010% | <0.0006 %
Inter Modulation Distortion [RCA | XLR, SMPTE]-80dB | -90dB-80dB | -85dB
Channel Separation (@ 1 kHz, 8Ω, Full Output)>100dB>90dBN/A
Input Impedance [RCA | XLR]100kΩ | 47kΩ
Input Sensitivity [RCA | XLR]1V | 2V
Gain [RCA | XLR]31.5dB | 25.5 dB33dB | 27dB
Trigger Inputs12VDC (optically isolated)
AC Input
90-264 VAC, 50-60Hz
90-132 VAC, 50-60Hz (Switch = 110)
180-264 VAC, 50-60Hz (Switch = 220)
* Fuse for 115V (110 Switch Setting; Stereo X, Mono X)6.3A | 250 VAC
(Slow Blow)
12A | 250 VAC
(Slow Blow)
10A | 250 VAC
(Slow Blow)
* Fuse for 230V (220 Switch Setting; Stereo X, Mono X)3.15A | 250 VAC
(Slow Blow)
6.3A | 250 VAC
(Slow Blow)
5A | 250 VAC
(Slow Blow)
Standby Power Consumption<0.5 Watt
Idle Power Consumption14 Watts26 Watts17 Watts
Maximum Power Consumption650 Watts1400 Watts800 Watts
Height (includes feet)3.3 inches | 84 mm
Width11.8 inches | 300 mm
Depth (includes button & connectors, excludes cables)13.9 inches | 352 mm
Weight10.1 pounds | 4.6kg11.9 pounds | 5.4kg11.2 pounds | 5.1 kg
Shipping Weight14.2 pounds | 6.4kg16.0 pounds | 7.3kg16.0 pounds | 7.3kg
* WARNING: Using an improper switch setting or fuse value VOIDS the warranty and may damage the unit.

Reviews

Customer Reviews:

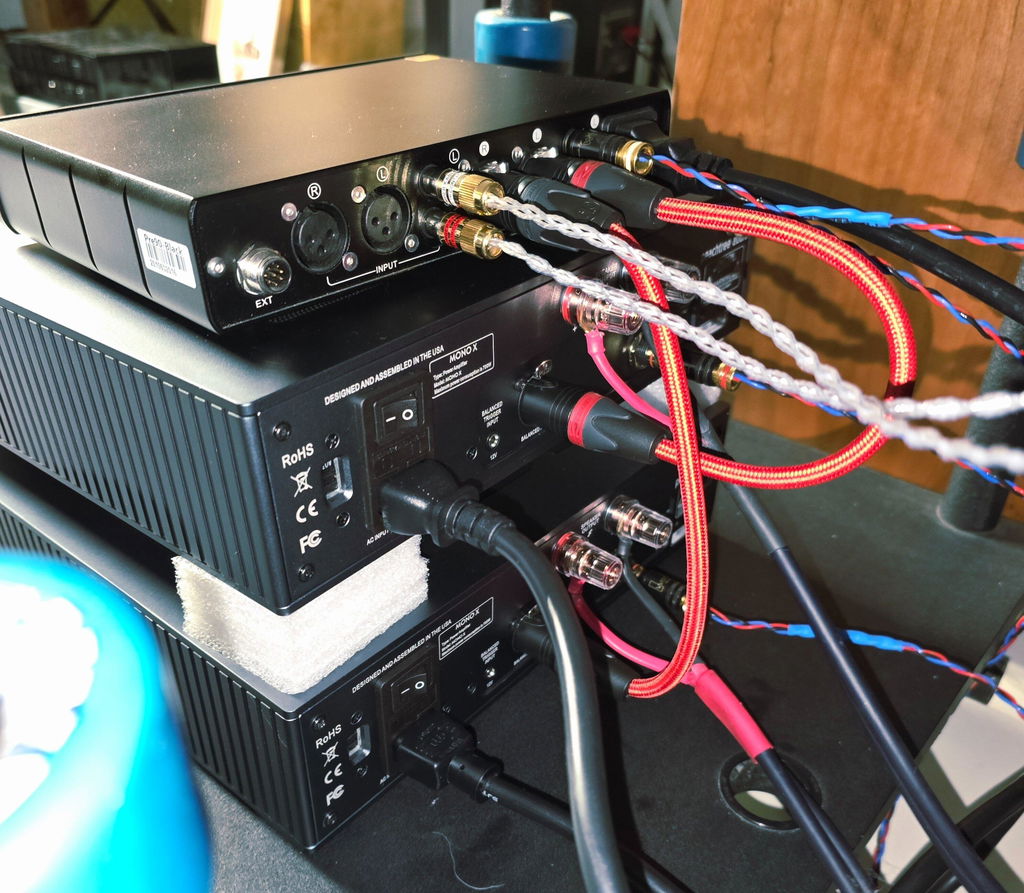

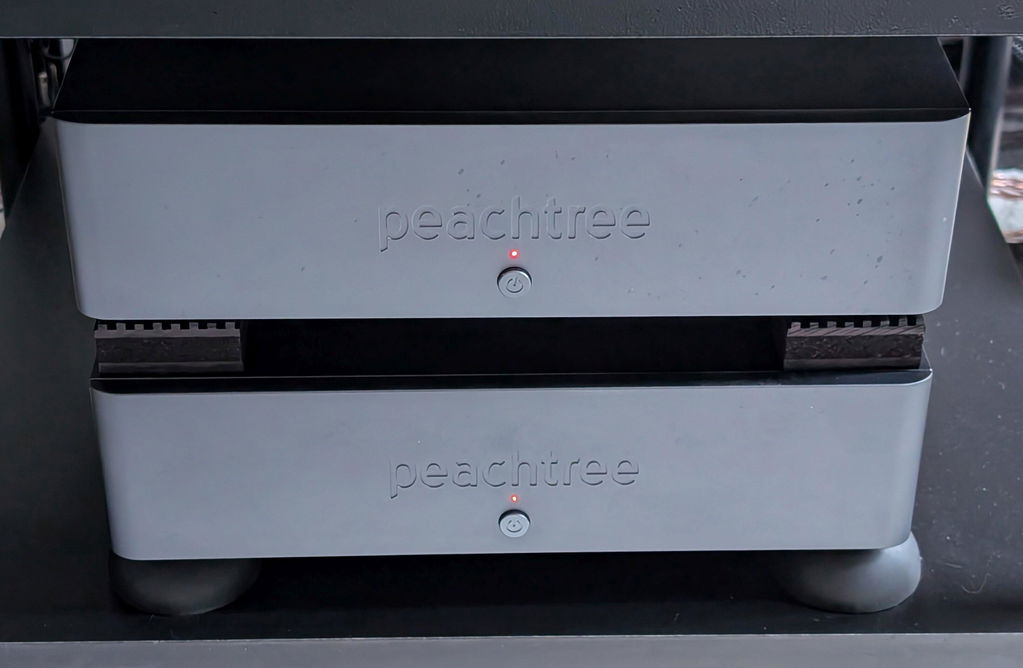

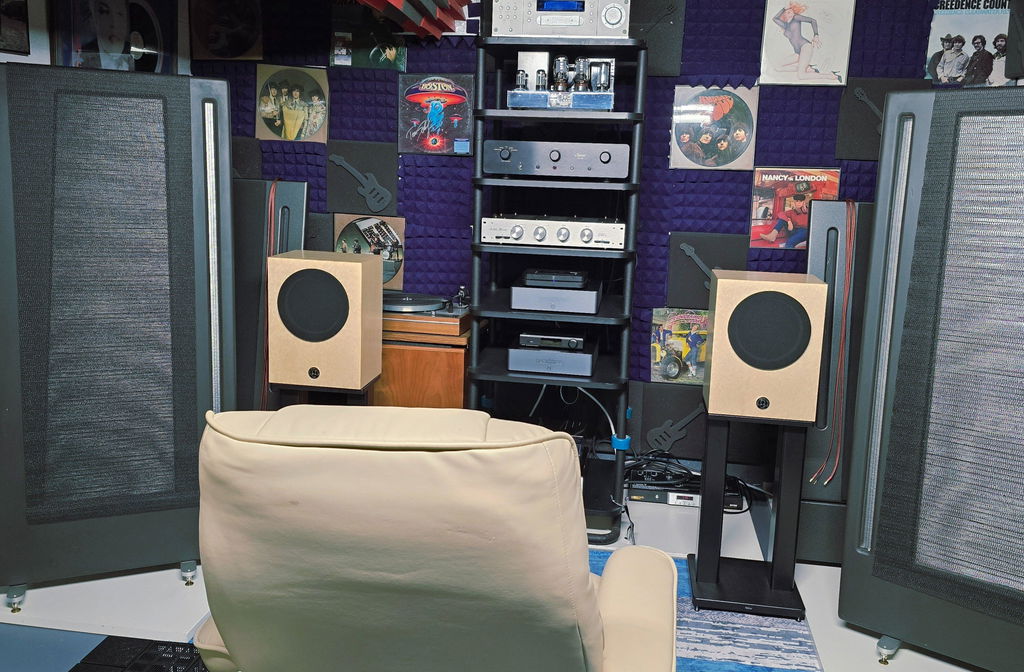

The Peachtree Mono X Amplifiers are Top-tier at the highest level. Powers my Apogee Duetta Signature Speakers effortlessly. The Amps are very Musical built like a tank and don't even break a sweat. Being a collector of tube amplifiers over the years, the Peachtree mono X amplifiers sounds like tube amplifiers, without the expense of replacing tubes. The Mono X amps are a true bargain considering the craftsmanship and quality at their price point. Highly recommended!
